RailMac CTY(L)8/6,7,9G(B) Underground Mining Battery Train

The RailMac CTY(L)8/6,7,9G(B) Underground Mining Battery Train has a series of characteristics. Its adhesive weight is 8 tons, and the track gauges can be 600, 762 or 900 mm. The hourly – system traction force reaches 11.18,12.83 kN, and the maximum traction force is 19.62 kN. The hourly – system speed is 6.2 , 7.5 ,7.8 km/h.

As part of EMAC, RailMac is a high-tech company specializing in the manufacturing of rail transit equipment, it plays a vital role in everything from railway equipment to railway maintenance,provides complete solutions for both open-pit and underground mining.

We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.

Advantages of CTY(L)8/6,7,9G(B) Underground Mining Battery Train

Frame:Constructed in welded steel and suspended by spring on grease be aring seats with taperedroller bearings.
Speed control:In order to achieve continuous and stepless speed regulation, they have an electronic speed controller with high reliability.
Brakes:Mechanical drum brake to the coupler.
Sanders:Mechanical sanding system to the rails.
Battery:The battery housing is constructed in steel plating with an interior anti-acid covering. Each device has 24 pcs series storage lead acid batteries.
Buffers:The locomotive has two buffers with spring shock absorbers to achieve complete shock absorption against collisions.

Technical Specifications

Engine Model:	CTY(L)8/6,7,9G(B)
Adhesive Weight:	8 tons
Track Gauge:	600, 762 or 900 mm
Hourly System Traction:	11.18 kN
Max. Traction:	19.62 kN
Hourly System Speed:	6.2 , 7.5 , 7.8 km/h
Supply Voltage:	110 , 132, 140, 144 V
Capacity of Traction Battery:	370 Ah or 440 Ah
Power of Electric Motor:	11 kW * 2 or 15 kW * 2
Length:	4420,4430, 4470,4580 or 4850 mm
Width:	1050,1054, 1212, 1216, 1350 ,1354 or 1356mm
Height:	1550 or 1600mm
Lead Time:	15 - 30 Working Days
Payment Terms:	T/T ,L/C

coming soon

Engine Model	Adhesive Weight	Track Gauge	Hourly System Traction	Max. Traction
CTY(L)8/6,7,9G(B)	8 tons	600, 762 or 900 mm	11.18 , 12.83 kN	19.62 kN

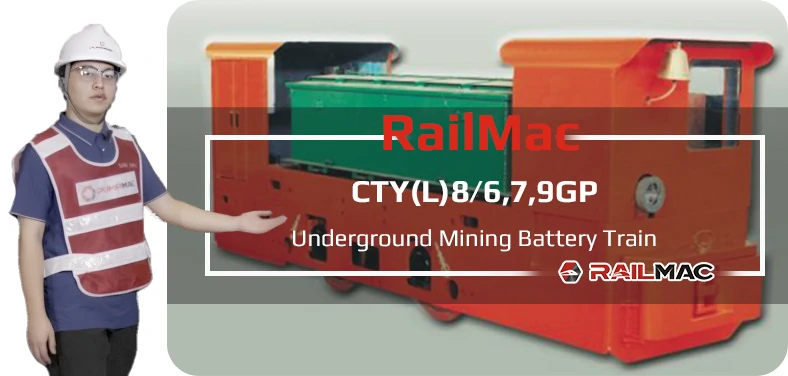

CTY(L)8/6,7,9GP	8 tons	600, 762 or 900 mm	13.12 kN	20.8 kN
------END------

Data Information of RailMac CTY(L)8/6,7,9G(B) Underground Mining Battery Train
Model Name	CTY(L)8/6,7,9G(B)	Adhesive Weight	8 tons
Track Gauge	600, 762 or 900 mm	Hourly System Traction	11.18 , 12.83 kN
Max. Traction	19.62 kN	Hourly System Speed	6.2 , 7.5 , 7.8 km/h
Supply Voltage	110 , 132, 140, 144 V	Capacity of Traction Battery	370 Ah or 440 Ah
Power of Electric Motor	11 kW * 2 or 15 kW * 2	Length	4420,4430, 4470,4580 or 4850 mm
Width	1050,1054, 1212, 1216, 1350 ,1354 or 1356mm	Height	1550 or 1600mm
Wheelbase	1100 or 1150mm	Wheel Diameter	600 or 680mm
Height of Traction	210,320 or 430mm	Min. Turning Radius	7 m
Speed Regulating Mode	Resistance or IGBT	Braking Mode	Mechanical Brake
------END------

coming soon
