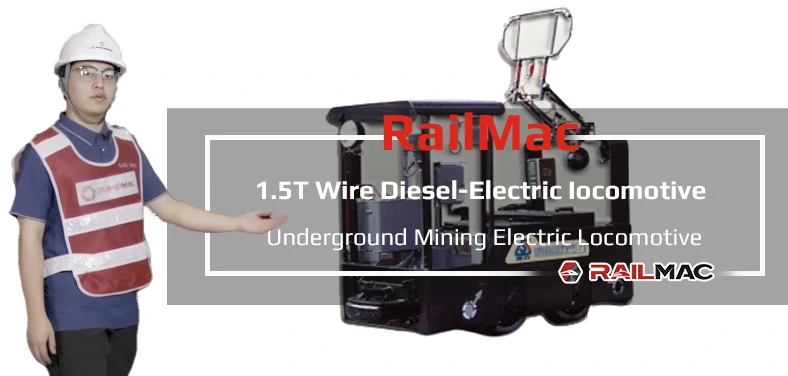

1.5T Wire Diesel-Electric Iocomotive
The 1.5T Wire Diesel-Electric Locomotive is a specially designed compact railway traction equipment for specific scenarios, playing a vital role in fields like mine tunnel transportation. With an overall compact shape, it typically measures 2,340 to 2,370 mm in length, 914 to 1,214 mm in width, and about 1,550 mm in height, perfectly adapted to narrow tunnel spaces. The wheel diameter is φ460 mm and the wheel gauge is 650 mm, allowing the locomotive to run flexibly on narrow-gauge railways with smaller wheel size and shorter wheel gauge. It adopts a diesel-electric hybrid drive system where the diesel engine acts as the prime mover to drive the generator, converting diesel’s chemical energy into electrical energy that powers the traction motor to drive the wheels, combining the power advantages of a diesel engine with the flexibility of electric drive. With an adhesive weight of 1.5 tons, it can travel on 600 mm, 762 mm, or 900 mm narrow-gauge tracks, featuring an hourly-rated traction force of 2.55 kN to 3.24 kN and a maximum traction force of 3.68 kN to haul ore wagons or other cargo through tunnels.
With its outstanding performance and reliability, it provides an efficient and environmentally friendly solution for mining transportation. We provide comprehensive life cycle services, from design to power system supply, from installation and commissioning to after-sales service training, as well as spare parts supply and technical support. Welcome to visit our website or contact our sales team for the latest product information and technical support.
General Specifications of 1.5T Wire Diesel-Electric Iocomotive Series
| Curb Weight: | 1.5tons |
| Track Gauge: | 600 , 762 or 900 mm |
| Traction Force: |
2.55 kN |
| Speed: |
4.54 km/h |
| Maximum Traction Force: |
3.68 kN |
| DC Voltage: | 100 V |
| Wheelbase: |
650 mm |
Vehicle Model |
Curb Weight |
Towing Force |
Vehicle Model |
Curb Weight |
Towing Force |
||
| CJY1.5/6、7、9G | 1.5 tons | 2.55 kN | |||||
| ——END—— | |||||||
RailMac 1.5T Wire Diesel-Electric Iocomotive Series Underground Mining Electric Locomotive
This is the list of all series of RailMac 1.5T Wire Diesel-Electric Iocomotive Series Underground Mining Electric Locomotive.
CJY1.5/6、7、9G Underground Mining Electric Locomotive
RailMac Model: CJY1.5/6、7、9G
Curb Weight: 1.5 tons
Towing Force: 2.55 kN
Speed: 4.54 km/h
Maximum Towing Force: 3.68 kN
