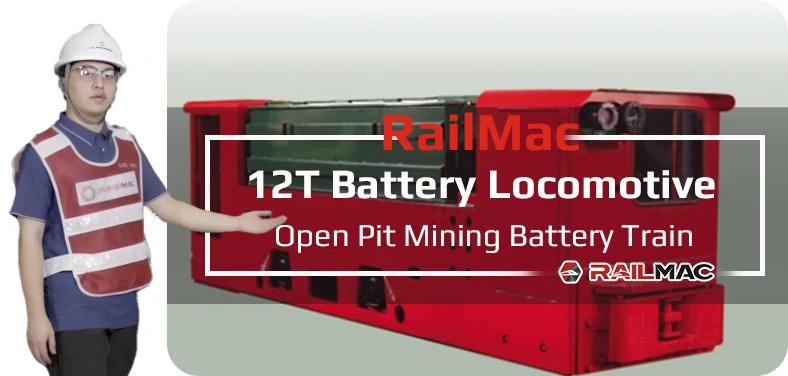

12T Battery Locomotive
The 12T Battery Locomotive is a viscous weight of 12 tons, adapted to 600, 762 or 900 mm gauge, traction force of 16.48 , 18.93 , 16.748 , 22 , 15.96 kN, the maximum traction force of up to 29.43, 31.2 , 32 kN, the speed of 8.7 , 9.6 , 9 , 14.03 km / h. The power supply unit voltage of 192 , 256 , 192 ,216 V, the capacity of 560Ah (5 hours capacity).
It is a kind of equipment suitable for small mine transportation and small and medium-sized mine shunting. The locomotive is characterized by small external dimensions, short wheelbase, compactness and flexibility, fast and reliable rising brake, simple structure and convenient maintenance.
With its outstanding performance and reliability, it provides an efficient and environmentally friendly solution for mining transportation. We provide comprehensive life cycle services, from design to power system supply, from installation and commissioning to after-sales service training, as well as spare parts supply and technical support. Welcome to visit our website or contact our sales team for the latest product information and technical support.
General Specifications of 12T Battery Locomotive Series
| Adhesive Weight: | 12 tons |
| Track Gauge: | 600, 762 or 900 mm |
| Hourly System Traction: |
16.48 , 18.93 , 16.748 , 22 , 15.96 kN |
| Max. Traction: |
29.43, 31.2 , 32 kN |
| Hourly System Speed: |
8.7 , 9.6 , 9 , 14.03 km / h |
| Supply Voltage: | 192 , 256 , 192 ,216 V |
| Capacity of Traction Battery: |
308 or 330 Ah (5 hours capacity) |
| Power of Electric Motor: | 22 kW * 2 or 30 kW * 2 |
| Wheelbase: | 1220, 1750 mm |
| Speed Regulating Mode: | Resistance or IGBT |
Engine Model |
Adhesive Weight |
Track Gauge |
Engine Model |
Adhesive Weight |
Track Gauge |
||
| CTY(L)12/6,7,9G(B) | 12 tons | 600, 762 or 900 mm | CTY(L)12/6,7,9GP | 12 tons | 600, 762 or 900 mm | ||
| CTL12/6,7,9GP-G High speed model | 12 tons | 600, 762 or 900 mm | |||||
| ——END—— | |||||||
RailMac 12T Battery Locomotive Series Open Pit Mining Battery Train
This is the list of all series of RailMac 12T Battery Locomotive Series Open Pit Mining Battery Train.
RailMac CTL12/6,7,9GP-G High speed model
RailMac Model: CTL12/6,7,9GP-G High speed model
Adhesive Weight: 12 tons
Track Gauge: 600, 762 or 900mm
Hourly System Traction: 15.96 kN
Max. Traction: 32 kN
Hourly System Speed: 14.03 km/h
RailMac CTY(L)12/6,7,9GP Open Pit Mining Battery Train
RailMac Model: CTY(L)12/6,7,9GP
Adhesive Weight: 12 tons
Track Gauge: 600, 762 or 900mm
Hourly System Traction: 16.748 kN,22 kN
Max. Traction: 31.2kN
Hourly System Speed: 8.7, 9 km/h
RailMac CTY(L)12/6,7,9G(B) Open Pit Mining Battery Train
RailMac Model: CTY(L)12/6,7,9G(B)
Adhesive Weight: 12 tons
Track Gauge: 600, 762 or 900 mm
Hourly System Traction: 16.48kN,18.93kN
Max. Traction: 29.43 kN
Hourly System Speed: 8.7 , 9.6 km/h
