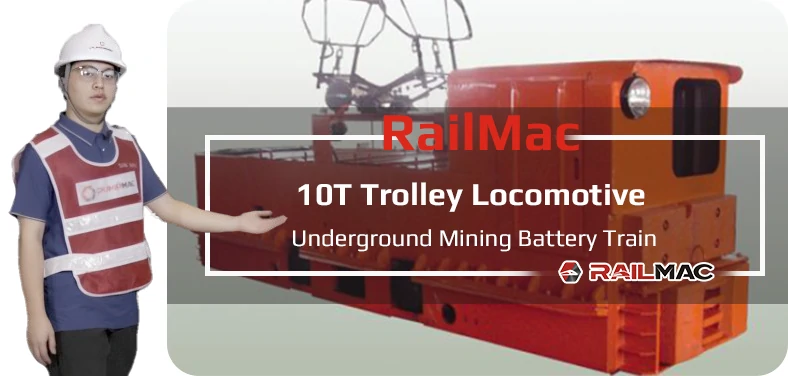

10T Trolley Locomotive
The 10T Trolley Locomotive is a viscous weight of 10 tons, adapted to 600, 762 or 900mm gauge, traction force of 13.05, 18.93, 15.09, 18.93 ,15.16 , 19.13 kN, the maximum traction force of up to 24.5 , 26 kN, the speed of 11,10.5,9.8,10.59 km / h. The power supply unit voltage of 250 ,550 V.
It is a kind of equipment suitable for small mine transportation and small and medium-sized mine shunting. The locomotive is characterized by small external dimensions, short wheelbase, compactness and flexibility, fast and reliable rising brake, simple structure and convenient maintenance.
With its outstanding performance and reliability, it provides an efficient and environmentally friendly solution for mining transportation. We provide comprehensive life cycle services, from design to power system supply, from installation and commissioning to after-sales service training, as well as spare parts supply and technical support. Welcome to visit our website or contact our sales team for the latest product information and technical support.
General Specifications of 10T Trolley Locomotive Series
| Adhesive Weight: | 10 tons |
| Track Gauge: | 600, 762 or 900 mm |
| Hourly System Traction: |
13.05, 18.93, 15.09, 18.93 ,15.16 , 19.13 kN |
| Max. Traction: |
24.5 , 26 kN |
| Hourly System Speed: |
11,10.5,9.8,10.59 km / h |
| Supply Voltage: | 250 , 550 V |
| Capacity of Traction Battery: |
N/A |
| Power of Electric Motor: | 21 kW * 2 or 30 kW * 2 or 24 kW * 2 |
| Wheelbase: | 1100 or 1220mm |
| Speed Regulating Mode: | Resistance or IGBT |
Engine Model |
Adhesive Weight |
Track Gauge |
Engine Model |
Adhesive Weight |
Track Gauge |
||
| CJY10/6,7,9G(B) | 10 tons | 600, 762 or 900 mm | CJY10/6,7,9GP | 10 tons | 600, 762 or 900 mm | ||
| ——END—— | |||||||
RailMac 10T Trolley Locomotive Series Underground Mining Battery Train
This is the list of all series of RailMac 10T Trolley Locomotive Series Underground Mining Battery Train.
RailMac CJY10/6,7,9GP Underground Mining Battery Train
RailMac Model: CJY10/6,7,9GP
Adhesive Weight: 10 tons
Track Gauge: 600, 762 or 900 mm
Hourly System Traction: 15.16 , 19.13 kN
Max. Traction: 26 kN
Hourly System Speed: 9.8 , 10.59 km/h
RailMac CJY10/6,7,9G(B) Underground Mining Battery Train
RailMac Model: CJY10/6,7,9G(B)
Adhesive Weight: 10 tons
Track Gauge: 600, 762 or 900 mm
Hourly System Traction: 13.05 , 18.93, 15.09 kN
Max. Traction: 24.5kN
Hourly System Speed: 11 , 10.5 km/h
