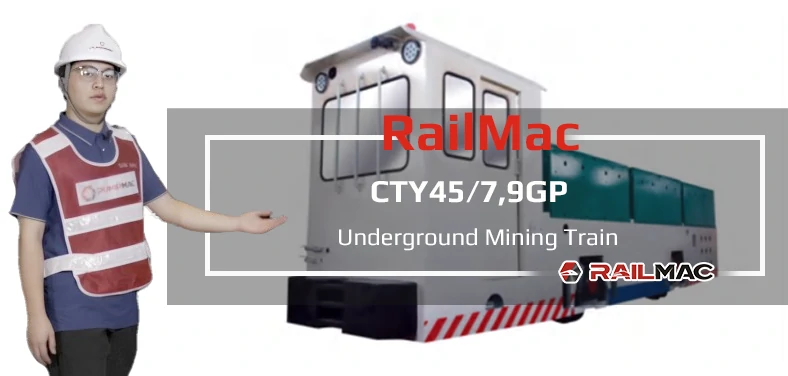

RailMac CTY45/7,9GP Underground Mining Train

The RailMac CTY45/7,9 GP Underground Mining Train has a series of characteristics. Its Self- weight is 45 tons, and the track gauges can be 762 or 900 mm. The wheelbase is 2600 mm, and the Min.Turning Curve is 25 m. The wheel diameter is 840 mm.

As part of EMAC, RailMac is a high-tech company specializing in the manufacturing of rail transit equipment, it plays a vital role in everything from railway equipment to railway maintenance,provides complete solutions for both open-pit and underground mining.

We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.

Advantages of CTY45/7,9 GP Underground Mining Train

Frame:Constructed in welded steel and suspended by spring on grease be aring seats with taperedroller bearings.
Speed control:In order to achieve continuous and stepless speed regulation, they have an electronic speed controller with high reliability.
Brakes:Mechanical drum brake to the coupler.
Sanders:Mechanical sanding system to the rails.
Battery:The battery housing is constructed in steel plating with an interior anti-acid covering. Each device has 24 pcs series storage lead acid batteries.
Buffers:The locomotive has two buffers with spring shock absorbers to achieve complete shock absorption against collisions.

Technical Specifications

Engine Model:	CTY45/7,9GP
Self-weight:	45 T
Track Gauge:	762 or 900 mm
Wheelbase:	2600 mm
Min.Tuming Curve:	25 m
Wheel Diameter:	840 mm
Motor Power:	110 kW * 2
Battery Capactiy:	630 Ah
Rated Voltage:	540 V
Length:	8120 mm
Width:	1500 mm
Height:	2400 mm
Lead Time:	15 - 30 Working Days
Payment Terms:	T/T ,L/C

coming soon

Engine Model	Self-weight	Track Gauge	Wheelbase	Min.Truning Curve
CTY45/7,9GP	45 T	762 or 900 mm	2600 mm	25 m
CTY50/7,9GP	50 T	762 or 900 mm	2600 mm	25 m
CTY55/7,9GP	55 T	762 or 900 mm	2600 mm	25 m
CTY60/7,9GP	60 T	762 or 900 mm	2600 mm	25 m
CTY65/7,9GP	65 T	762 or 900 mm	2600 mm	25 m
------END------

Data Information of RailMac CTY45/7,9GP Underground Mining Train
Model Name	CTY45/7,9Gp	Self-weight	45T
Track Gauge	762 or 900 mm	Min.Tuming Curve	25 m
Wheel Diameter	840 mm	Motor Power	110 kW * 2
Battery Capactiy	630 Ah	Rated Voltage	540 V
Hourly Traction	89 kN	Max.Traction	115 kN
Hourly Speed	8.9 km.h	Max,Speed	16.9km/h
Length	8120 mm	Width	1500 mm
Height	2400 mm	Wheelbase	2600 mm
------END------

coming soon

Can Quality be Guaranteed?

(1)Strict production process and testing: The production process adopts advanced manufacturing technology and strict quality management system to ensure that each engine is precisely assembled and tested. Komatsu will conduct various performance tests, such as power test, emission test, etc., to ensure the running stability and reliability of the engine.
(2) Quality management system: Our company has a complete quality management system to ensure that every link meets strict quality standards.
(3) Continuous improvement and feedback mechanism: We focus on continuous improvement, communicate with customers through feedback mechanism, continuously optimize product quality and performance, and ensure that the needs of the market and customers are met.

Is the Price Reasonable?

We are the original manufacturer and can give you the most suitable price. The key to dealing with Chinese suppliers is to find and choose reliable business partners who will not deceive you for short-term business, but aim to establish a long-term career and lifelong partnership. EMAC is one of the reliable partners. We will not pursue short-term high profits, but we care about our decades of good reputation. Our cooperation with all business partners is not only as suppliers and customers, but also as close friends and brothers.

What should I do if I don’t Understand the Product?

You can unconditionally explain your needs to us. We have a professional team that uses simple and clear language to explain the characteristics and advantages of the product and help you choose the right engine to match your machine. If you need further support or explanation, we are always available to help and explain the relevant content to help you solve the problem.

How to Place an Order?

You can confirm the product by connecting with our sales, or you can choose to contact us through wahtspp or your email, and we will guide you to complete the order process.
