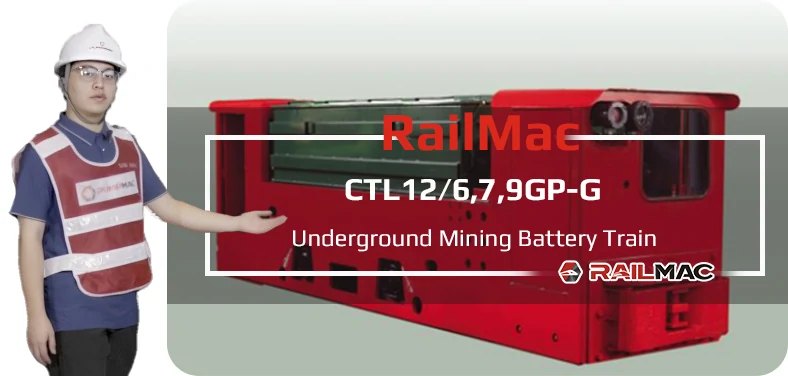

RailMac CTL12/6,7,9GP-G High Speed Model Underground Mining Battery Train

The RailMac CTL12/6,7,9GP-G High speed model Underground Mining Battery Train has a series of characteristics. Its adhesive weight is 12 tons, and the track gauges can be 600, 762 or 900 mm. The hourly – system traction force reaches 15.96 kN, and the maximum traction force is 32 kN. The hourly – system speed is 14.03 km/h.

As part of EMAC, RailMac is a high-tech company specializing in the manufacturing of rail transit equipment, it plays a vital role in everything from railway equipment to railway maintenance,provides complete solutions for both open-pit and underground mining.

We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.

Advantages of CTL12/6,7,9GP-G High speed model Underground Mining Battery Train

Frame:Constructed in welded steel and suspended by spring on grease be aring seats with taperedroller bearings.
Speed control:In order to achieve continuous and stepless speed regulation, they have an electronic speed controller with high reliability.
Brakes:Mechanical drum brake to the coupler.
Sanders:Mechanical sanding system to the rails.
Battery:The battery housing is constructed in steel plating with an interior anti-acid covering. Each device has 24 pcs series storage lead acid batteries.
Buffers:The locomotive has two buffers with spring shock absorbers to achieve complete shock absorption against collisions.

Technical Specifications

Engine Model:	CTL12/6,7,9GP-G High speed model
Adhesive Weight:	12 tons
Track Gauge:	600, 762 or 900 mm
Hourly System Traction:	15.96 kN
Max. Traction:	32 kN
Hourly System Speed:	14.03 km/h
Supply Voltage:	216 V
Capacity of Traction Battery:	560Ah (5 hours capacity)
Power of Electric Motor:	30 kW * 2
Length:	5100mm
Width:	1090, 1212 or 1350mm
Height:	1900mm
Lead Time:	15 - 30 Working Days
Payment Terms:	T/T ,L/C

coming soon

Engine Model	Adhesive Weight	Track Gauge	Hourly System Traction	Max. Traction
CTY(L)12/6,7,9G(B)	12 tons	600, 762 or 900 mm	16.48 , 18.93 kN	29.43 kN
CTY(L)12/6,7,9GP	12 tons	600, 762 or 900 mm	16.748 , 22 kN	31.2 kN
CTL12/6,7,9GP-G High speed model	12 tons	600, 762 or 900 mm	15.96 kN	32 kN
------END------

Data Information of RailMac CTL12/6,7,9GP-G High speed model Underground Mining Battery Train
Model Name	CTL12/6,7,9GP-G High speed model	Adhesive Weight	12 tons
Track Gauge	600, 762 or 900 mm	Hourly System Traction	15.96 kN
Max. Traction	32 kN	Hourly System Speed	14.03 km/h
Supply Voltage	216 V	Capacity of Traction Battery	560Ah (5 hours capacity)
Power of Electric Motor	30 kW * 2	Length	5100 mm
Width	1090, 1212 or 1350 mm	Height	1900 mm
Wheelbase	1750 mm	Wheel Diameter	680 mm
Height of Traction	320 or 430 mm	Min. Turning Radius	10 m
Speed Regulating Mode	AC Converter	Braking Mode	Mechanical, Air ,Electric Brake
------END------

coming soon

Can Quality be Guaranteed?

(1)Strict production process and testing: The production process adopts advanced manufacturing technology and strict quality management system to ensure that each engine is precisely assembled and tested. Komatsu will conduct various performance tests, such as power test, emission test, etc., to ensure the running stability and reliability of the engine.
(2) Quality management system: Our company has a complete quality management system to ensure that every link meets strict quality standards.
(3) Continuous improvement and feedback mechanism: We focus on continuous improvement, communicate with customers through feedback mechanism, continuously optimize product quality and performance, and ensure that the needs of the market and customers are met.

Is the Price Reasonable?

We are the original manufacturer and can give you the most suitable price. The key to dealing with Chinese suppliers is to find and choose reliable business partners who will not deceive you for short-term business, but aim to establish a long-term career and lifelong partnership. EMAC is one of the reliable partners. We will not pursue short-term high profits, but we care about our decades of good reputation. Our cooperation with all business partners is not only as suppliers and customers, but also as close friends and brothers.

What should I do if I don’t Understand the Product?

You can unconditionally explain your needs to us. We have a professional team that uses simple and clear language to explain the characteristics and advantages of the product and help you choose the right engine to match your machine. If you need further support or explanation, we are always available to help and explain the relevant content to help you solve the problem.

How to Place an Order?

You can confirm the product by connecting with our sales, or you can choose to contact us through wahtspp or your email, and we will guide you to complete the order process.
