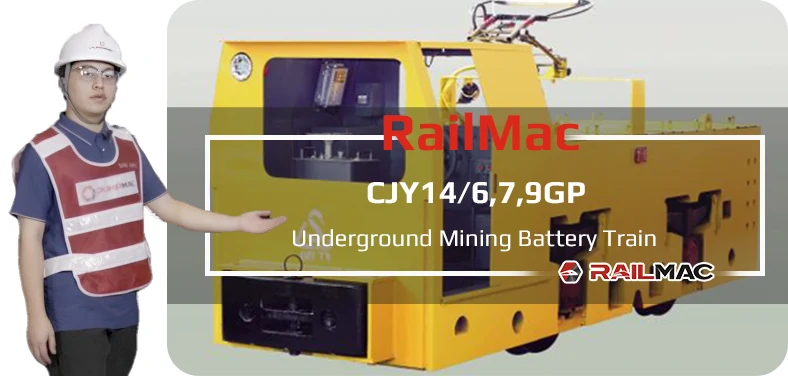

RailMac CJY14/6,7,9GP Underground Mining Battery Train

The RailMac CJY14/6,7,9GP Underground Mining Battery Train has a series of characteristics. Its adhesive weight is 14 tons, and the track gauges can be 600,762 or 900 mm. The hourly – system traction force reaches 27.16 kN, and the maximum traction force is 36.4 kN. The hourly – system speed is 11.2 km/h.

As part of EMAC, RailMac is a high-tech company specializing in the manufacturing of rail transit equipment, it plays a vital role in everything from railway equipment to railway maintenance,provides complete solutions for both open-pit and underground mining.

We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.

Advantages of CJY14/6,7,9GP Underground Mining Battery Train

Frame:Constructed in welded steel and suspended by spring on grease be aring seats with taperedroller bearings.
Speed control:In order to achieve continuous and stepless speed regulation, they have an electronic speed controller with high reliability.
Brakes:Mechanical drum brake to the coupler.
Sanders:Mechanical sanding system to the rails.
Battery:The battery housing is constructed in steel plating with an interior anti-acid covering. Each device has 24 pcs series storage lead acid batteries.
Buffers:The locomotive has two buffers with spring shock absorbers to achieve complete shock absorption against collisions.

Technical Specifications

Engine Model:	CJY14/6,7,9GP
Adhesive Weight:	14 tons
Track Gauge:	600 , 762 or 900 mm
Hourly System Traction:	27.16 kN
Max. Traction:	36.4 kN
Hourly System Speed:	11.2 km/h
Supply Voltage:	250 , 550 V
Capacity of Traction Battery:	N/A
Power of Electric Motor:	45 kW * 2
Length:	4800 mm
Width:	1050,1212, or 1350 mm
Height:	1700 mm
Lead Time:	15 - 30 Working Days
Payment Terms:	T/T ,L/C

coming soon

Engine Model	Adhesive Weight	Track Gauge	Hourly System Traction	Max. Traction
CJY14/6,7,9G(B)	14 tons	600,762 or 900 mm	26.68 kN	34.3 kN
CJY14/6,7,9GP	14 tons	600,762 or 900 mm	27.16 kN	36.4 kN
------END------

Data Information of RailMac CJY14/6,7,9GP Underground Mining Battery Train
Model Name	CJY14/6,7,9GP	Adhesive Weight	14 tons
Track Gauge	600, 762 or 900 mm	Hourly System Traction	27.16 kN
Max. Traction	36.4 kN	Hourly System Speed	11.2 km/h
Supply Voltage	550 V	Capacity of Traction Battery	N/A
Power of Electric Motor	52 kW * 2	Length	4800 mm
Width	1050,1212, or 1350 mm	Height	1700 mm
Wheelbase	1700 mm	Wheel Diameter	760 mm
Height of Traction	320/430 mm	Min. Turning Radius	12 m
Speed Regulating Mode	Resistance or IGBT	Braking Mode	Mechanical, Electric and Air Brake
------END------

coming soon

Can Quality be Guaranteed?

(1)Strict production process and testing: The production process adopts advanced manufacturing technology and strict quality management system to ensure that each engine is precisely assembled and tested. Komatsu will conduct various performance tests, such as power test, emission test, etc., to ensure the running stability and reliability of the engine.
(2) Quality management system: Our company has a complete quality management system to ensure that every link meets strict quality standards.
(3) Continuous improvement and feedback mechanism: We focus on continuous improvement, communicate with customers through feedback mechanism, continuously optimize product quality and performance, and ensure that the needs of the market and customers are met.

Is the Price Reasonable?

We are the original manufacturer and can give you the most suitable price. The key to dealing with Chinese suppliers is to find and choose reliable business partners who will not deceive you for short-term business, but aim to establish a long-term career and lifelong partnership. EMAC is one of the reliable partners. We will not pursue short-term high profits, but we care about our decades of good reputation. Our cooperation with all business partners is not only as suppliers and customers, but also as close friends and brothers.

What should I do if I don’t Understand the Product?

You can unconditionally explain your needs to us. We have a professional team that uses simple and clear language to explain the characteristics and advantages of the product and help you choose the right engine to match your machine. If you need further support or explanation, we are always available to help and explain the relevant content to help you solve the problem.

How to Place an Order?

You can confirm the product by connecting with our sales, or you can choose to contact us through wahtspp or your email, and we will guide you to complete the order process.
