HCD-1500 New Energy Locomotive

Adopting the internationally advanced 32 torque permanent magnet synchronous motor (PMSM) as the main drive, FOC closed-loop control technology is used to automatically monitor the speed and frequency of the locomotive. The whole vehicle drive system is integrated into the whole vehicle VCU for real-time data monitoring and control of the locomotive. It is mainly used for shunting and short distance freight operations in coal, metallurgy, petrochemicals, ports, railway logistics parks and other working conditions.

As part of EMAC, RailMac is a high-tech company specializing in the manufacturing of rail transit equipment, it plays a vital role in everything from railway equipment to railway maintenance,provides complete solutions for both open-pit and underground mining.

We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.

Advantages of HCD-1500 New Energy Locomotive Underground Mining Battery Train

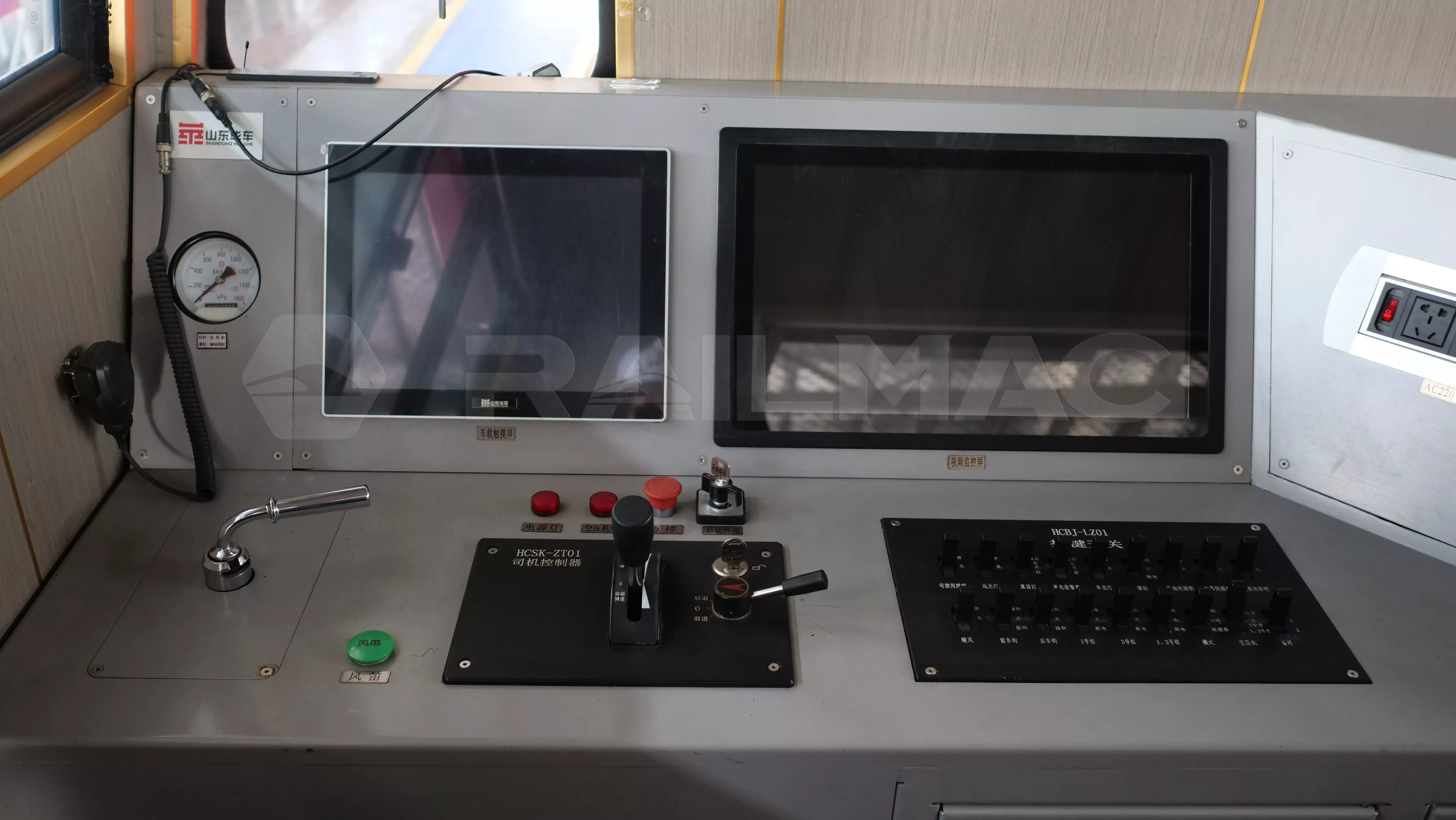

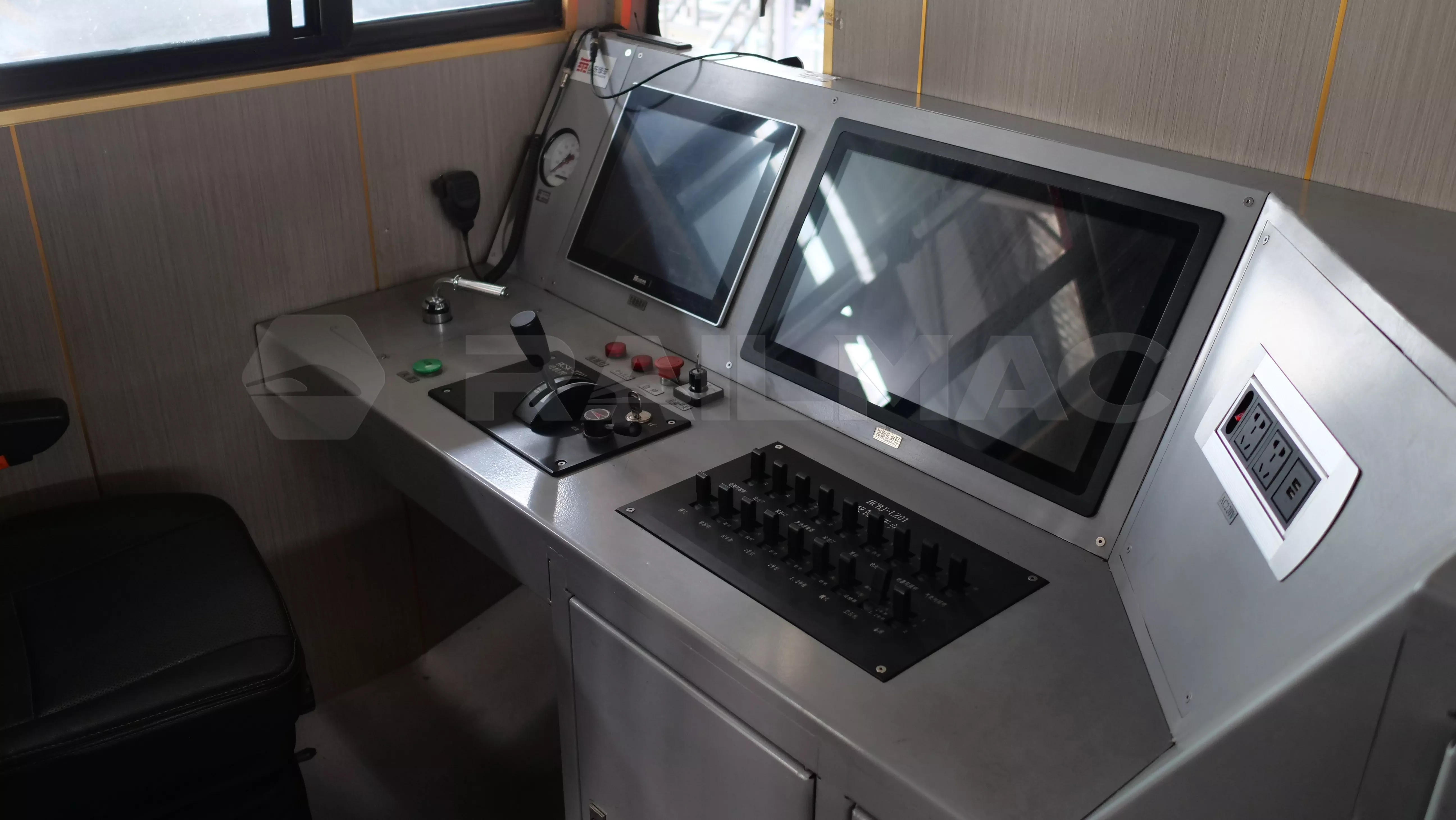

Vehicle Controller VCU System:As the core control component of the entire locomotive, the whole vehicle controller controls the operation and safety protection functions of the locomotive. The locomotive control panel highly reproduces the driving habits of internal combustion locomotives, making it easy for drivers to quickly adapt to the control of new energy locomotives .
High power permanent magnet high-efficiency drive motor :Energy saving and efficient, with high traction torque. Built in water-cooled circulation, maintenance free design for the entire machine, with a design life of 20 years, it is an advanced replacement product for locomotive traction in industrial and mining scheduling.
High power motor drive system :Adopting the most advanced international DTC low speed high torque variable frequency speed regulation technology, the DC power of the battery pack is inverted into adjustable three-phase AC power through high-power IGBT components. The output nodes are multiple, the combination is flexible, the overall design is compact, and installation and maintenance are convenient .
Energy storage device :Our company can provide different device solutions for locomotives, including lithium iron phosphate battery packs, supercapacitors, or lithium titanate battery packs, which can achieve a maximum device power of 3800kw · h and full charging within one hour.

Technical Specifications

Engine Model:	HCD-1500 new energy locomotive
Maximum traction force:	173kN
Maximum speed:	30km/h
Vehicle size:	7600 * 3000 * 4200 mm
Range:	60km

coming soon

Engine Model	Maximum traction force	Maximum speed	Vehicle size	Range
HCD-5000 new energy locomotive	550kN	60km/h	18750 * 3200 * 4480mm	150km
HCD-3500 new energy locomotive	310kN	35km/h	14390 * 3285 * 4455mm	120km
HCD-2500 new energy locomotive	250kN	35km/h	14000 * 3185 * 4255mm	120km
HCD-1500 new energy locomotive	173kN	30km/h	7600 * 3000 * 4200 mm	60km
HCD-1 typ e new energy rail locomotive	150kN	100km/h	N/A	110km
HCD-2 typ e new energy rail locomotive	180kN	100km/h	N/A	100km
